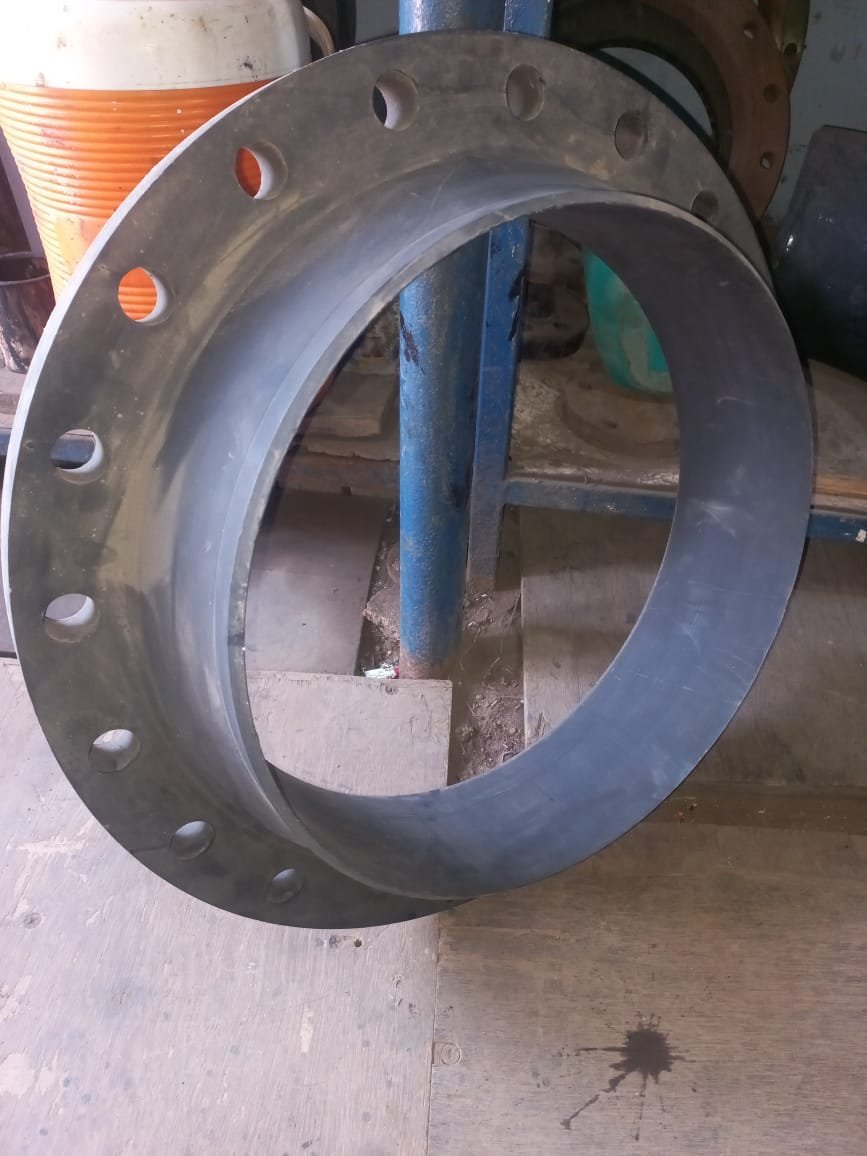

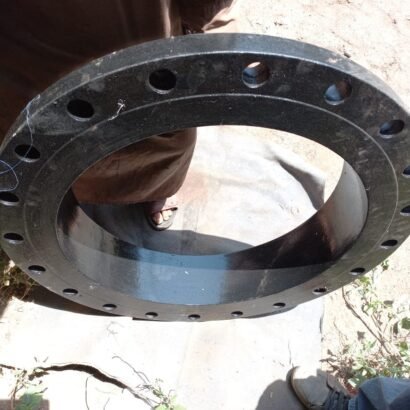

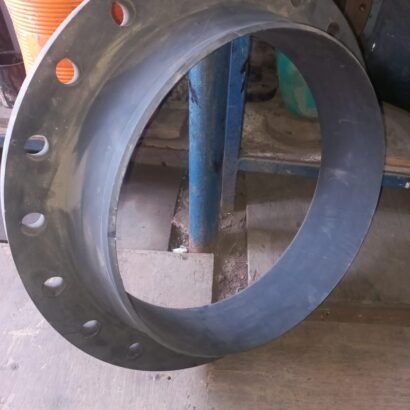

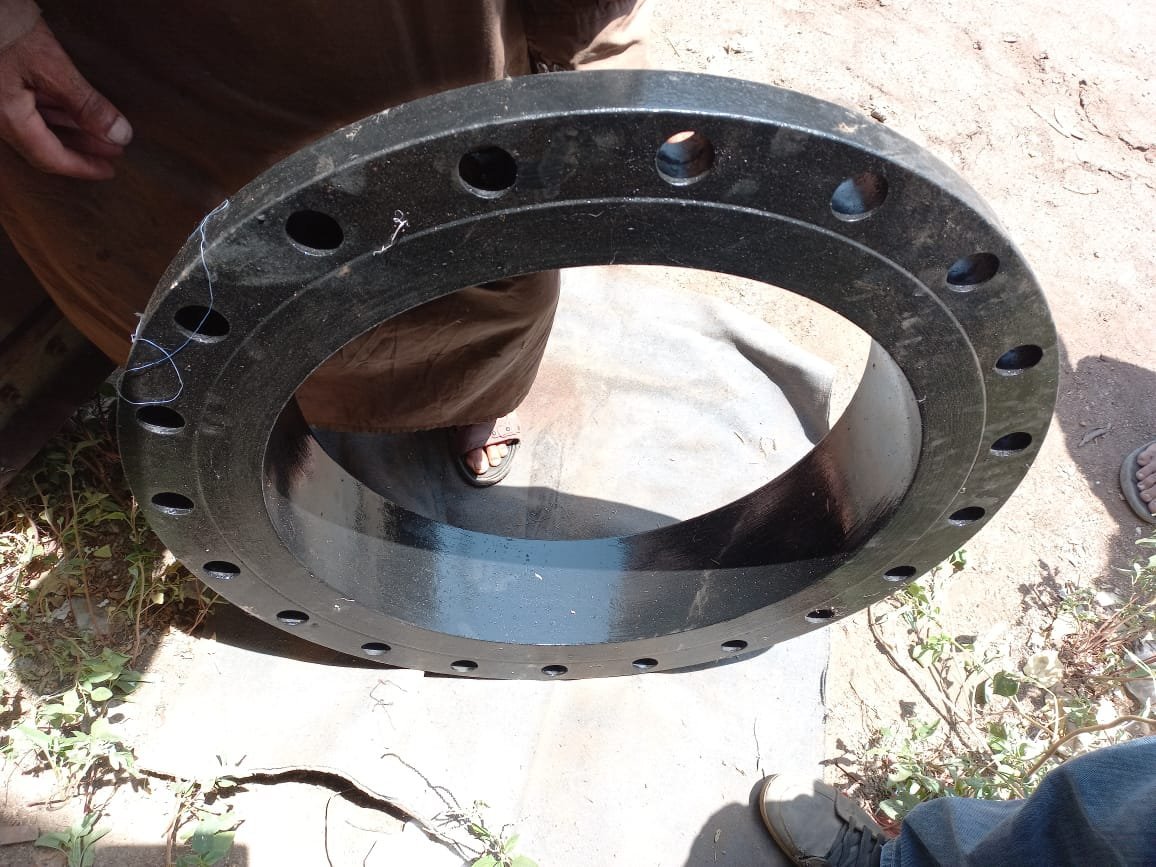

20″ Weld Neck Class 150 Flange Dimension Chart :
All standard dimensions below conform to ASME B16.5 (dimensions are given in both inches and millimeters for convenience):
| Feature / Dimension | Value (Inches) | Value (Metric / mm) |
| Nominal Pipe Size (NPS) | 20″ | 500 mm |
| Outside Diameter (O.D.) | 27.50″ | 700.0 mm |
| Flange Thickness (minimum) | 1.69″ | 42.9 mm |
| Length Through Hub (Y) | 5.69″ | 144.5 mm |
| Diameter of Hub at Base (X) | 22.00″ | 558.8 mm |
| Diameter of Weld Neck (Bevel End) | 20.00″ | 508.0 mm |
| Raised Face Diameter (R.F.) | 25.00″ | 635.0 mm |
| Raised Face Height | 0.06″ | 1.6 mm |
| Approximate Weight | ~185 lbs | ~84 kg |
Drilling & Bolting Specifications
To install and secure a 20″ Class 150 flange, the following drilling template is utilized:
-
Bolt Circle Diameter (PCD): 25.00″ (635.0 mm)
-
Number of Bolt Holes: 20
-
Diameter of Bolt Holes: 1.25″ (31.8 mm)
-
Diameter of Bolts/Studs: 1-1/8″
-
Stud Bolt Length (with 1/16″ Raised Face): 6.75″ (171.5 mm)
