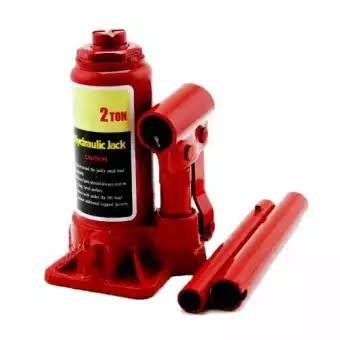

Hydraulic Bottle Jack

Description

Heavy-Duty Hydraulic Jacks :

A hydraulic bottle jack is a compact, high-capacity lifting device. It earns its name from its distinct cylindrical shape. Because of its space-saving vertical design, it delivers high lifting power in a small frame. Consequently, technicians rely on it alongside the versatile hydraulic floor jack. This wheeled, low-profile alternative excels in automotive repair, construction, and industrial maintenance.

Depending on the job, technicians choose from several specialized tools. For example, they might pick a compact small bottle jack, a wide-base hydraulic car jack, or a precision hydraulic trailer jack. For low-clearance machinery, however, a toe jack lifts heavy loads from near ground level. Meanwhile, warehouse logistics rely on a hydraulic pallet jack to move freight. Whatever the tool, hydraulic power allows a single operator to lift massive loads easily.

Tonnage Capacities for Every Application :

Lifting devices are categorized by load ratings. Therefore, workers can ensure both job-site safety and efficiency:

• Light to Mid-Duty (4–8 Tons): Compact options like a 4 ton jack, 5 ton jack, or 5 ton floor jack work well for passenger cars. For engine hoists, an 8 ton long ram jack provides extended vertical reach.

• Heavy-Duty (10–20 Tons): Demanding commercial jobs call for a 10 ton jack or a compact 10 ton bottle jack. Furthermore, fleet maintenance requires a 20 ton hydraulic jack, a standard 20 ton bottle jack, or a 20 ton floor jack for semi-trucks.

• Extra Heavy-Duty & Pneumatic (22–50+ Tons): Compressed air powers the 20 ton air hydraulic bottle jack, 22 ton jack, and 22 ton air jack for rapid commercial service. Finally, a massive 30 ton or 50 ton bottle jack handles extreme structural loads with ease.

Step-by-Step Pumping Cycle :

The core mechanical principles remain identical across standard hydraulic jacks, bottle jacks, and heavy-duty floor jacks:

1. Suction Stroke: Raising the handle retracts the pump plunger. As a result, this draws hydraulic oil from the reservoir into the pump cylinder through a one-way valve.

2. Pressure Stroke: Pushing the handle down forces oil past a discharge check valve. Consequently, high-pressure fluid enters the main cylinder and multiplies force.

3. Holding State: Dual check valves lock the high-pressure fluid under the ram. Thus, backflow is prevented, keeping the load perfectly steady.

4. Lowering: Opening the release valve unseals a bypass channel. Therefore, fluid flows safely back into the reservoir under the weight of gravity.

Key Components :

• Base Plate: A wide steel base that provides essential stability and prevents tipping.

• Oil Reservoir: An outer jacket that stores and recycles hydraulic fluid.

• Lift Piston (Ram): A solid steel column that extends upward under pressure. In addition, many models include an adjustable extension screw.

• Pump Plunger & Handle: A manual force applicator that multiplies user input to build high pressure smoothly.

• Release Valve: A precision threaded needle valve that controls fluid release for smooth, controlled lowering.
