Description

Magma Weld Passivation Paste: Technical Guide to Weld Passivation & Surface Treatment :

Stainless steel naturally achieves its corrosion resistance through a microscopically thin chromium oxide layer on its surface. However, high-heat welding processes severely disrupt this protective layer. As a result, welding introduces heat tint, free iron contamination, and localized chromium depletion across the joint. To solve this issue, Magma Weld Passivation Paste provides a specialized chemical formulation engineered for targeted weld passivation. Specifically, it restores the vital protective passive layer across Heat-Affected Zones (HAZ) and weld seams without requiring expensive full-immersion equipment.

Technical Overview & Key Features :

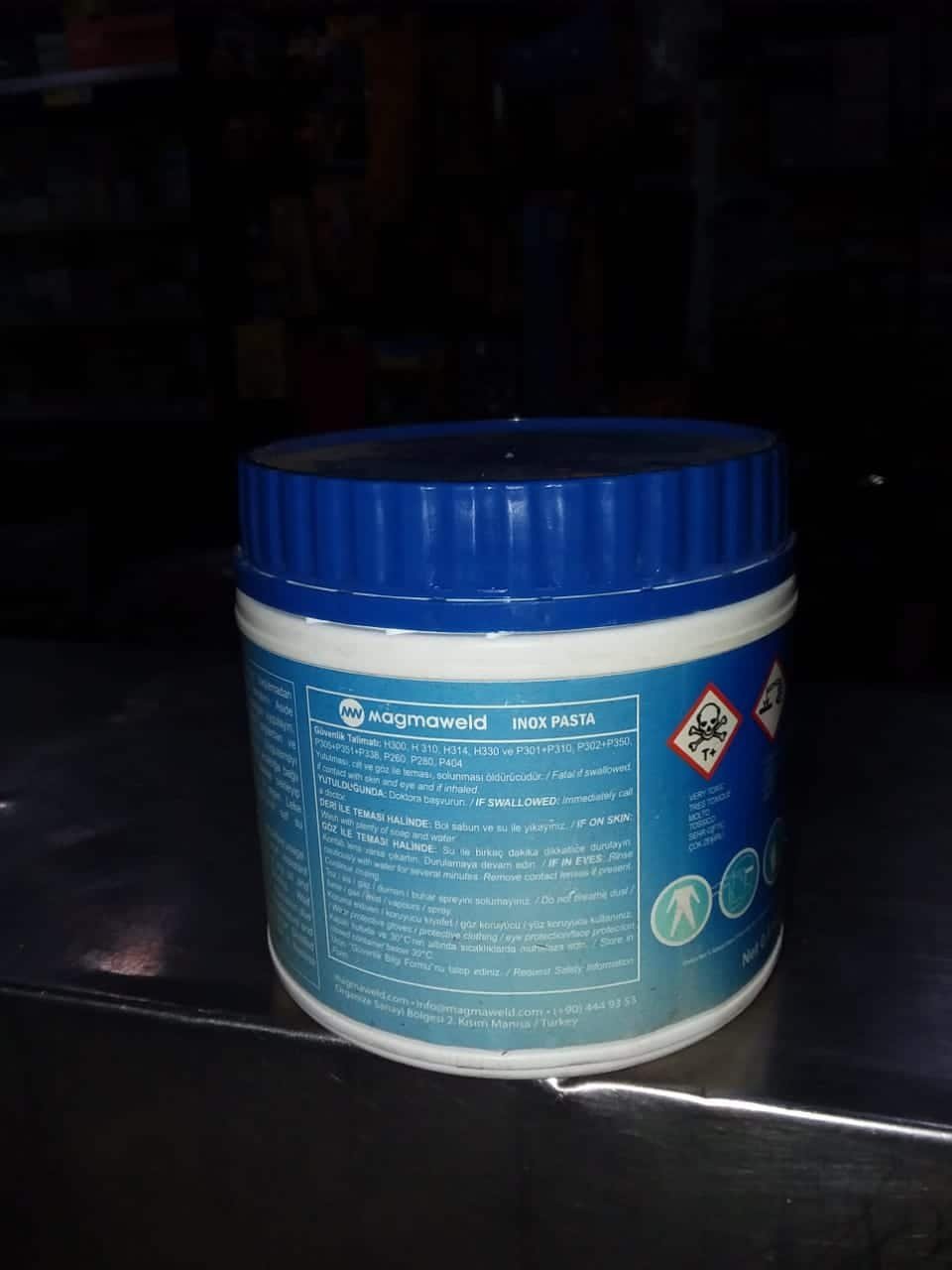

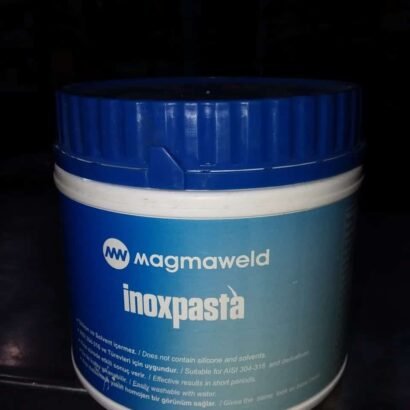

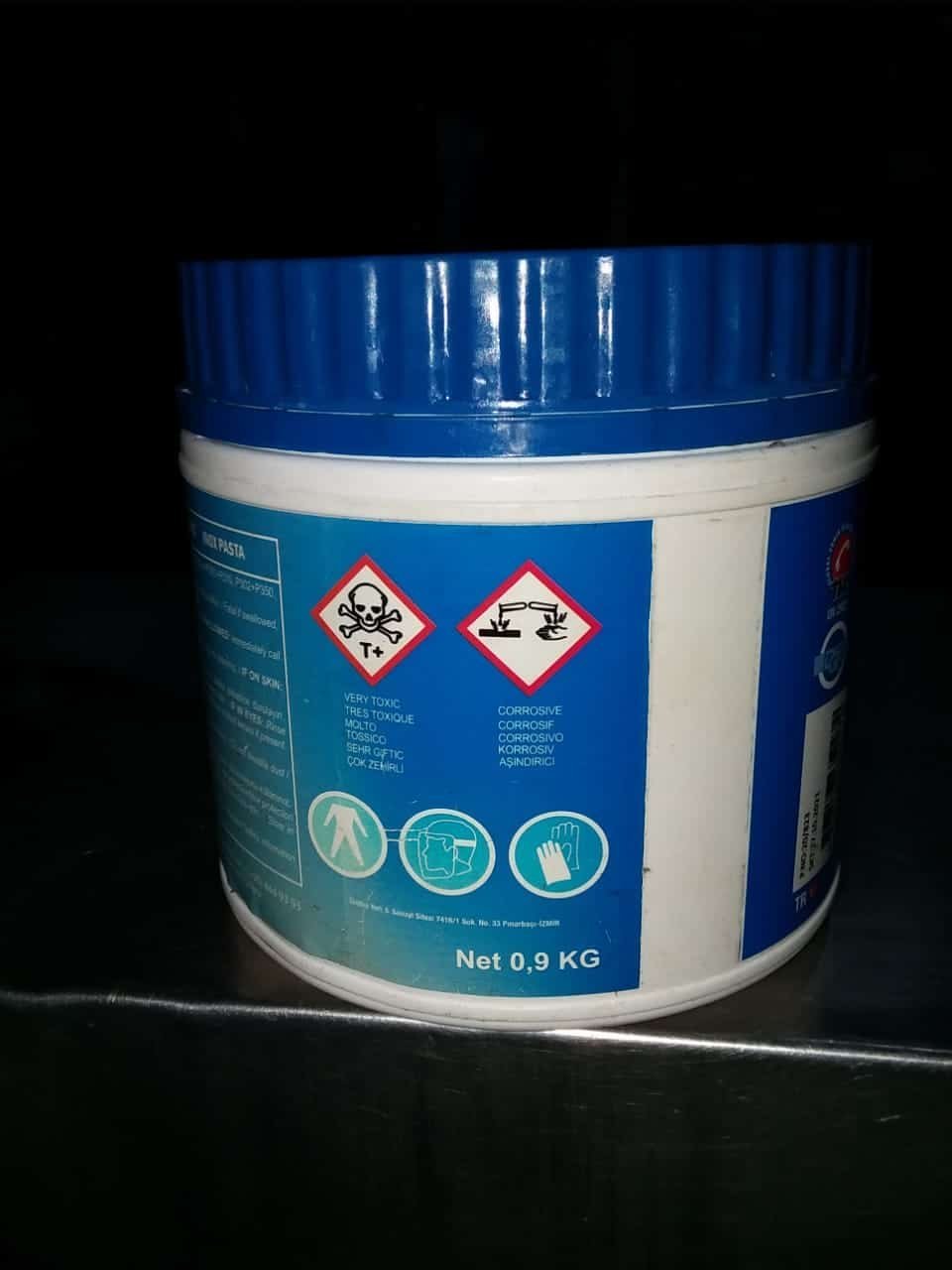

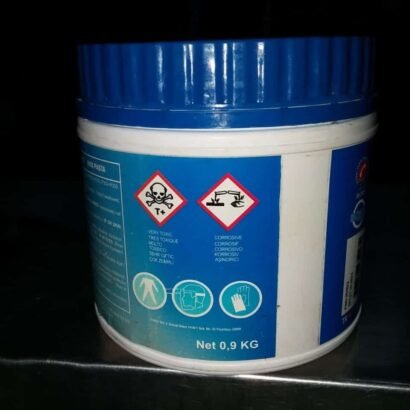

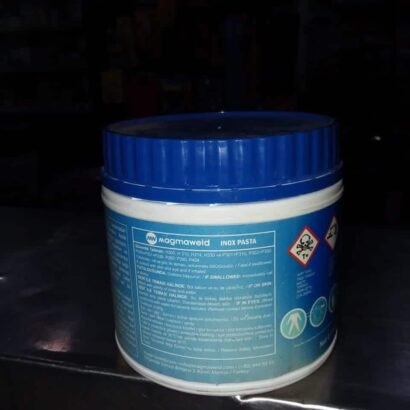

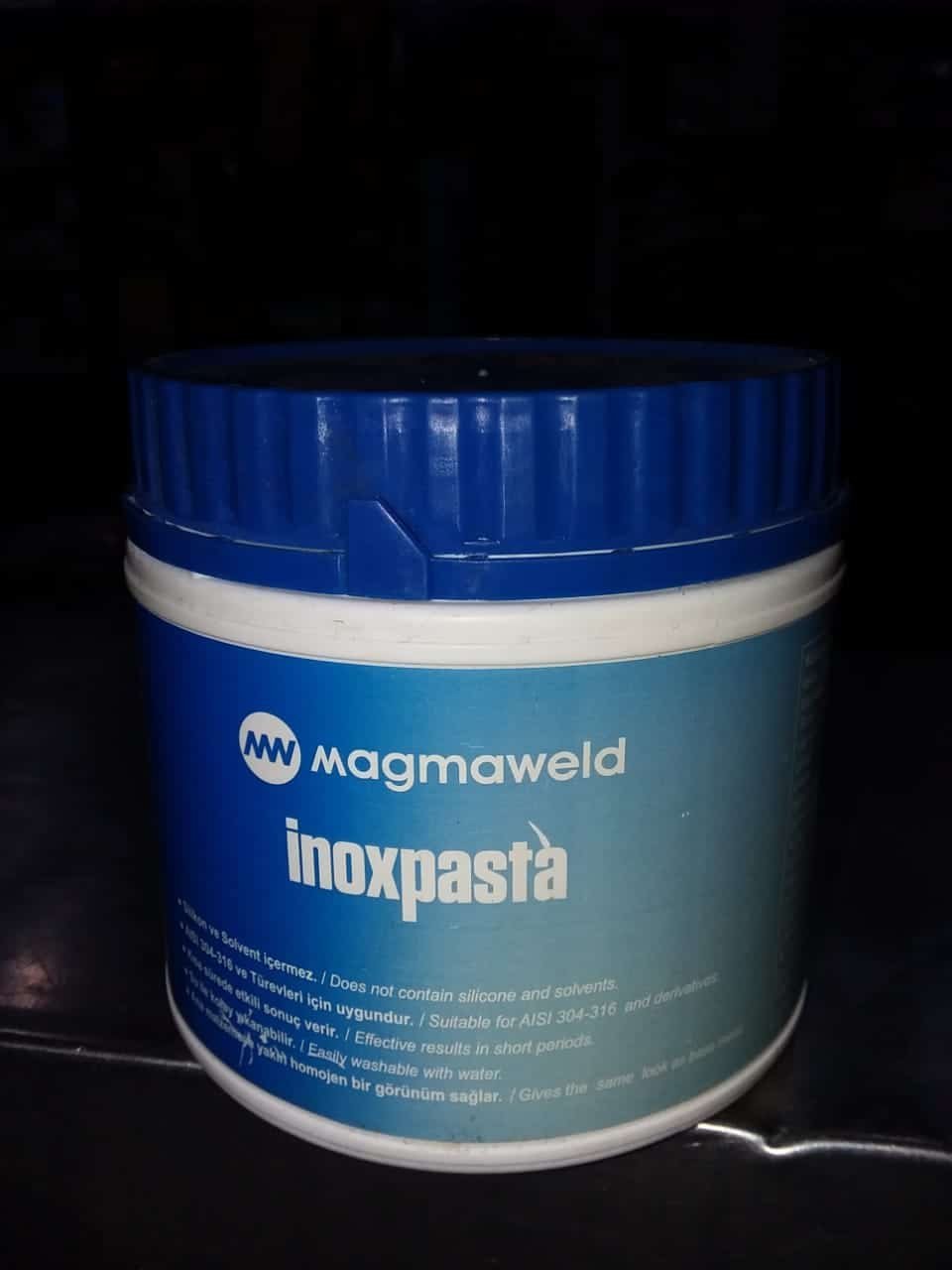

For localized field treatments, Magma Weld Passivation Paste is typically packaged in convenient sizes, such as a 0.9 kg Bottle, making it easy to store and apply on-site.

• Targeted Application: First, it minimizes chemical waste by applying the passivation chemical exclusively where heat tint occurs.

• Thixotropic Retention: Furthermore, the high-viscosity paste formulation clings firmly to vertical seams and overhead joints during critical dwell times without dripping.

• Restores Passive Film: Consequently, it removes surface impurities to ensure uniform passivation of stainless steel fabrications and long-term corrosion resistance.

Pickling vs. Passivation: Understanding the Process :

When treating welded surfaces, pickling and passivation serve as two essential, complementary surface treatment steps:

1. Pickling: First, this step uses acidic compounds to physically dissolve stubborn weld scale, heavy scales, heat tint, discoloration, annealing colors, and surface-bound rust particles near the weld.

2. Passivation: Subsequent to pickling, this chemical oxidation process dissolves any residual free iron. In doing so, it promotes the rapid formation of a uniform, highly corrosion-resistant chromium oxide film ($Cr_2O_3$).

Key Applications Include:

• Weld Cleaning: Applying pickling and passivation paste directly to clean weld seams and their surrounding heat-affected areas.

• Scale Removal: Removing heavy oxides, scale, and discoloration without resorting to abrasive mechanical methods.

How to Apply Magma Weld Passivation Paste :

To achieve a clean, silvery-white surface without grinding or buffing, follow this step-by-step procedure carefully:

1. Apply the Paste: First, apply the paste onto the stainless steel welded seam and nearby area using a brush with nylon bristles.

2. Allow Dwell Time: Next, provide a contact time of 5 to 30 minutes. Note that the exact duration depends directly on the grade of stainless steel, the material thickness, and the ambient temperature of the metal surface.

3. Wash and Rinse: Afterward, wash the surface thoroughly with a pressurized water jet spray. If necessary, apply light scrubbing with a plastic scrubber to clear stubborn residue. Ultimately, this process leaves a completely clean, silvery-white finish.
