SS Sprockets

Description

SS Sprockets & MS Sprockets Double Sprockets :

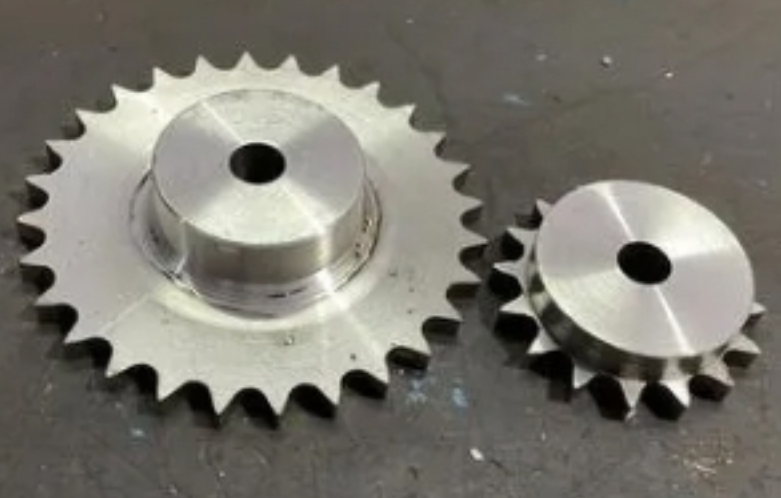

Stainless Steel (SS) Sprockets :

Manufactured primarily from grades like 304 or 316, stainless steel sprockets offer exceptional corrosion resistance, heat tolerance, and chemical inertness. Consequently, they are the standard choice in food processing, pharmaceutical, marine, and high-humidity environments. In these settings, exposure to moisture, washdown chemicals, or extreme temperatures would quickly degrade carbon steel.

Mild Steel (MS) Sprockets :

In contrast, mild steel sprockets provide superior tensile strength and high wear resistance at a lower cost. Additionally, these sprockets are often heat-treated or induction-hardened on the teeth for extra durability. As a result, MS sprockets excel in heavy-duty manufacturing, mining, construction, and general agricultural equipment. However, they are best suited for environments where mechanical stress is high but chemical corrosion is minimal.

Deciphering Pitch Sizes & ANSI Standards :

Industrial sprockets adhere to standardized sizing to ensure seamless interchangeability. Specifically, under the American National Standards Institute (ANSI), sprockets use a numbering system to indicate chain pitch. For instance, chain pitch measures the exact distance between roller centers:

Specialization & Configuration Types :

Furthermore, drive assemblies often require specific structural configurations to manage tension and load distribution effectively:

• Tooth Count: The number of teeth directly affects gear ratios, speed, and torque. For example, a 40-tooth sprocket is popular for standard reduction setups. Conversely, a 60-tooth sprocket achieves higher speed reductions and spreads wear across more contact points.

• Idler Assemblies: An idler sprocket includes an integrated bearing. Therefore, it can rotate freely on a stationary shaft. Because of this design, idlers are essential for maintaining correct chain tension, preventing slack, and guiding the drive around obstacles.

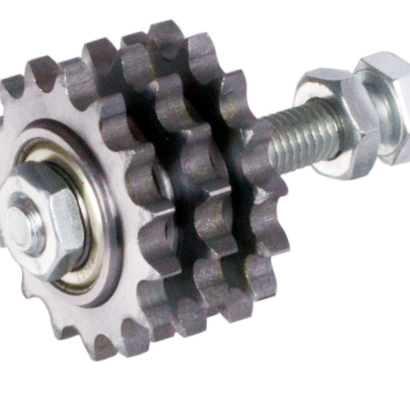

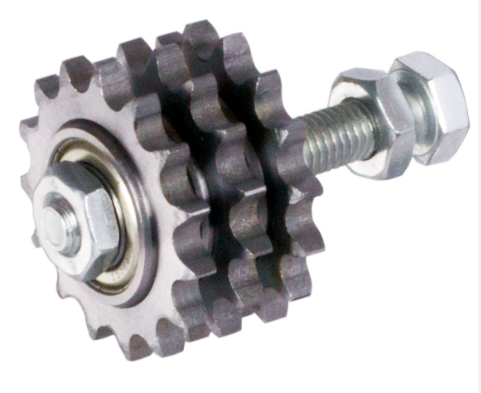

• Multi-Strand Systems: Single-strand chains are often insufficient when transmitting high horsepower in limited space. Therefore, double roller chain sprockets feature two sets of teeth side-by-side. As a result, they drive a duplex roller chain, distributing heavy loads evenly across multiple strands.
