Understanding the Lathe Dead Center: Uses, Angles, and Applications :

Precision and stability drive success in modern machining. When operators turn long components, securing both ends prevents deflection, vibration, and taper errors. A dead center plays a vital role in achieving this stability.

What is a Dead Center?

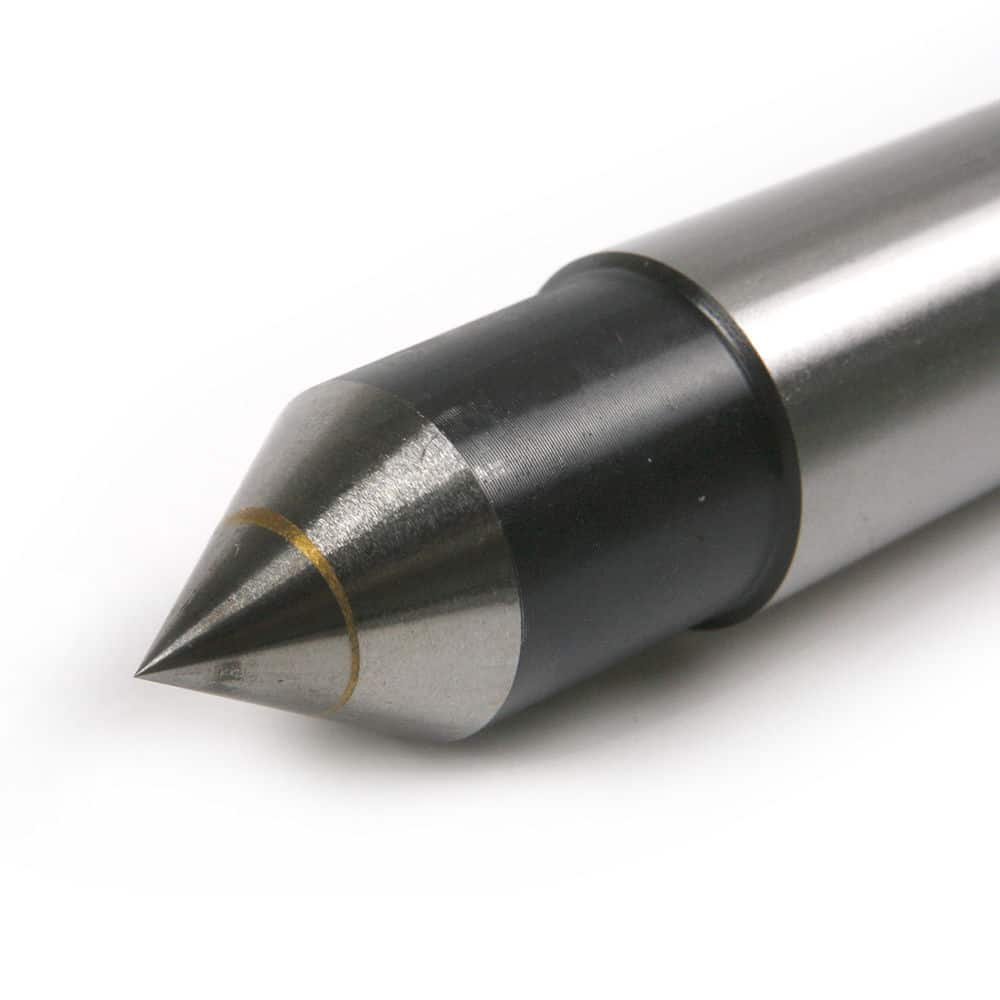

A dead center is a solid, non-rotating hardened point that supports a workpiece. Machinists typically mount it in the tailstock quill. The dead center stays stationary while the workpiece rotates against it.

Standard Geometry & Center Angles :

The geometry of the center point ensures proper load distribution and accurate centering:

• Standard Angle: The conical point features a precisely ground 60° included angle for metalworking.

• Woodworking Variation: Wood lathe centers occasionally use an 80° angle or specialized spurs to prevent splitting soft material.

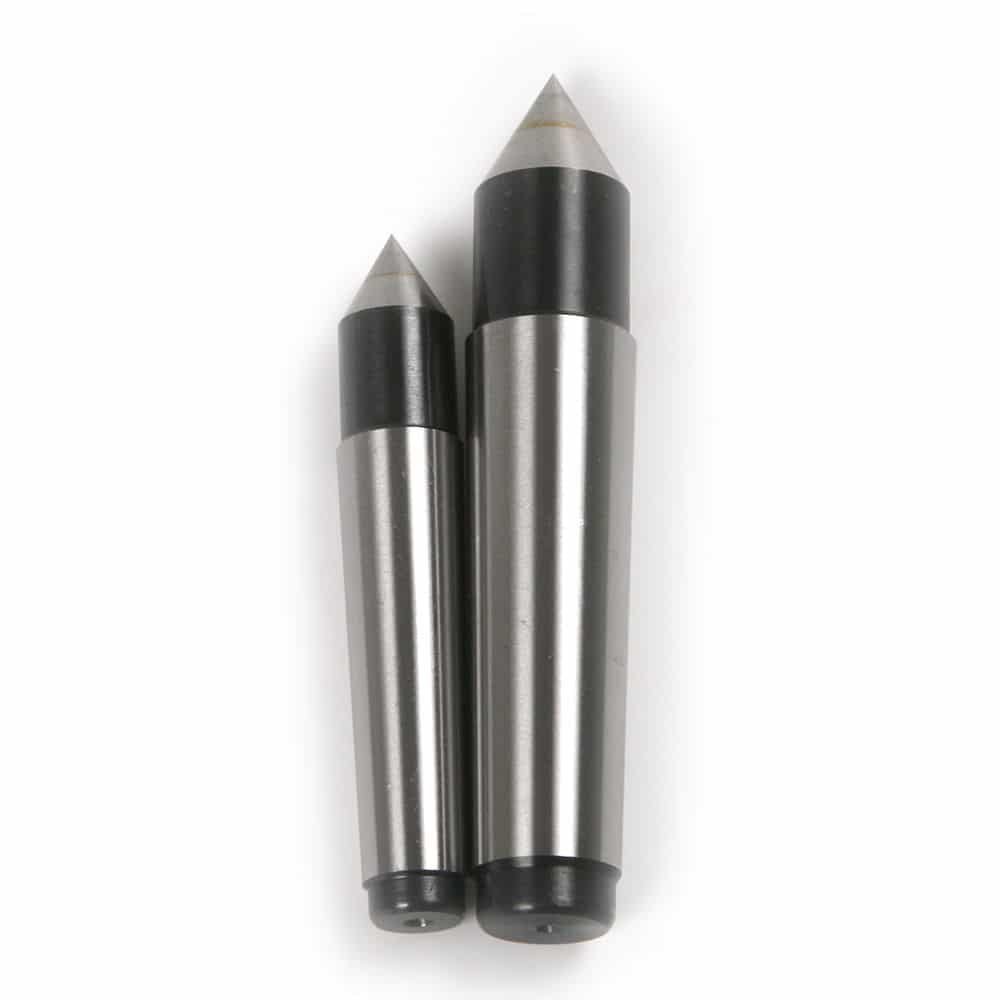

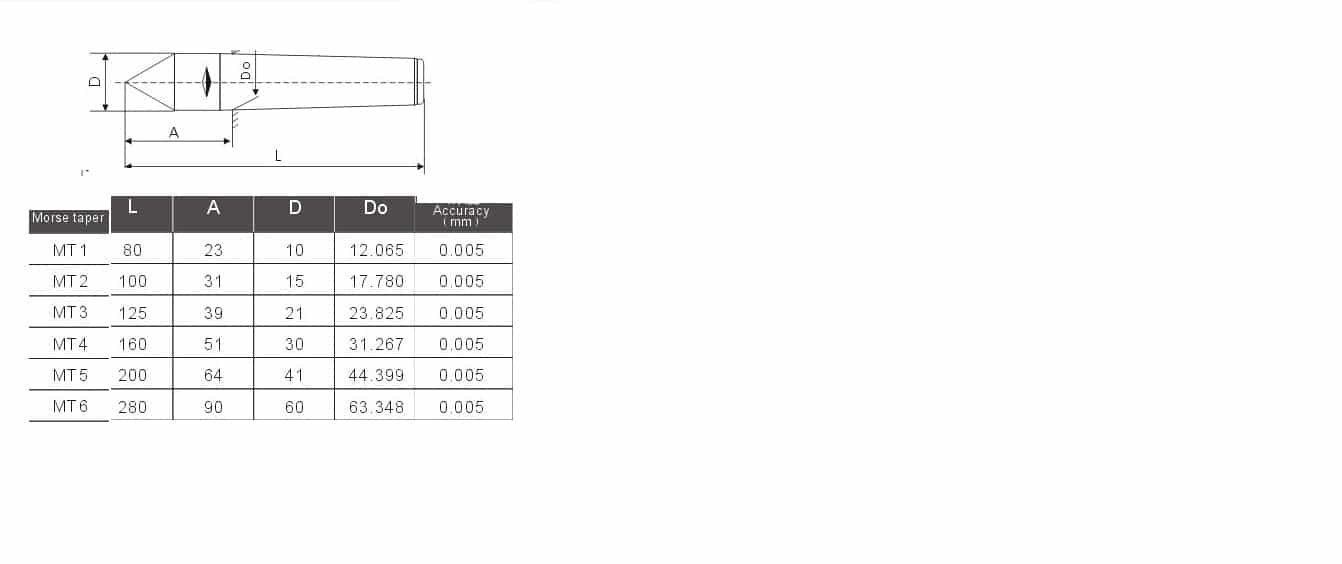

• Taper Shank: Most dead centers use a Morse Taper (MT) design to seat firmly inside the tailstock. Benchtop lathes typically use an MT2 dead center, while larger machinery requires MT3, MT4, or MT5 tapers.

Key Variations :

Machinists choose specific variations based on the task:

1. Solid & Carbide-Tipped Centers: Standard steel centers suit low-speed operations. However, carbide-tipped models handle high-speed work better because they resist heat and wear.

2. Half Center Setup: A half center features a ground-away section on the 60° cone. This clearance allows facing tools to reach the center hole without colliding with the dead center.
