Understanding Bearing Centers and Support Bearings: From Machining Tailstocks to Driveline Assemblies :

Whether turning workpiece stock on a metal lathe or dampening drivetrain harmonic vibrations in a rear-wheel-drive vehicle, maintaining dynamic stability across a rotating axis is a fundamental principle of mechanical engineering. Central to this stability is the support bearing system—a domain that encompasses both the machining tailstock center and automotive driveline support structures.

This guide explores the mechanisms, applications, and maintenance of lathe tailstock bearing systems and driveline center support bearing units.

Part 1: Machining & Lathe Tailstock Bearing Centers :

In lathe operations, maintaining concentricity across a long workpiece requires support at both ends of the machine bed. While the spindle drives rotation at one end, the headstock tailstock relationship defines the central axis of rotation.

The Role of the Lathe Tailstock :

A lathe tailstock (often written simply as a tail stock) mounts directly onto the bed ways opposite the spindle. Its primary job is to hold a tailstock center, supporting the non-driven end of the workpiece to prevent bending under cutting forces.

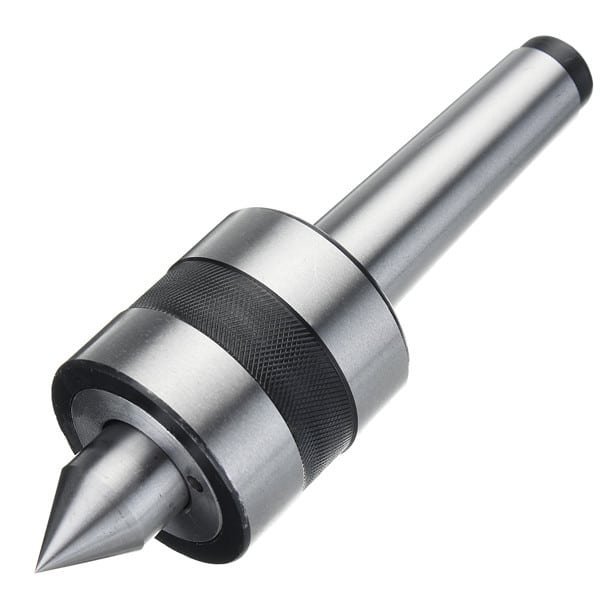

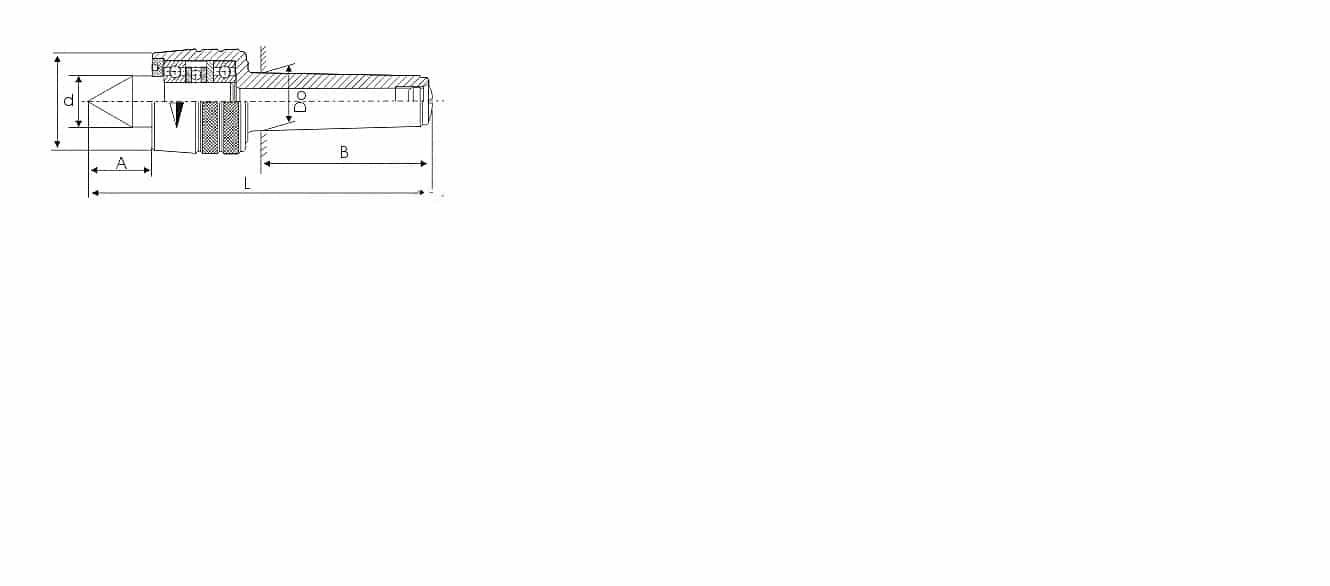

• Dead Centers vs. Live Centers: A dead center is static and relies on lubrication between the tip and the workpiece. A modern live center tailstock, by contrast, features internal anti-friction bearings that allow the point to rotate smoothly alongside the workpiece.

• Taper Standards: The Morse Taper (MT) is the universal mounting standard. An mt2 tailstock taper is common across benchtop equipment, making a live center mt2 standard equipment for hobbyist and production work alike.

• Equipment Variations:

  • Mini Lathe Tailstock: Compact units engineered for precision small-parts turning.

  • Wood Lathe Tailstock: Designed with specialized cup or cone live centers to support timber fibers without splitting the workpiece.

  • Pneumatic Tailstock: Used in high-volume production turning, employing air pressure to quickly actuate the spindle and clamp workpieces with repeatable force.

A quality bearing center inside a live center reduces friction, prevents heat buildup, and stops chatter marks from ruining surface finishes.

Part 2: Automotive Driveline Support Bearings :

Outside the machine shop, the term center bearing refers to a crucial component in multi-piece drive shafts and prop-shaft systems.

What is a Drive Shaft Support Bearing?

When a vehicle’s driveshaft spans a long distance, a single continuous tube becomes prone to whipping and resonant vibration. Auto manufacturers split the shaft into two or more sections supported by a middle drive shaft carrier bearing (also referred to as a shaft support bearing or drive shaft support bearing).

Mounted inside a rubber dampening boot secured to the chassis, this prop shaft center bearing dampens driveline vibrations while allowing the shaft to articulate smoothly.
