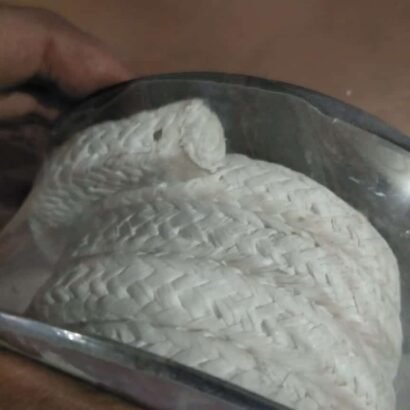

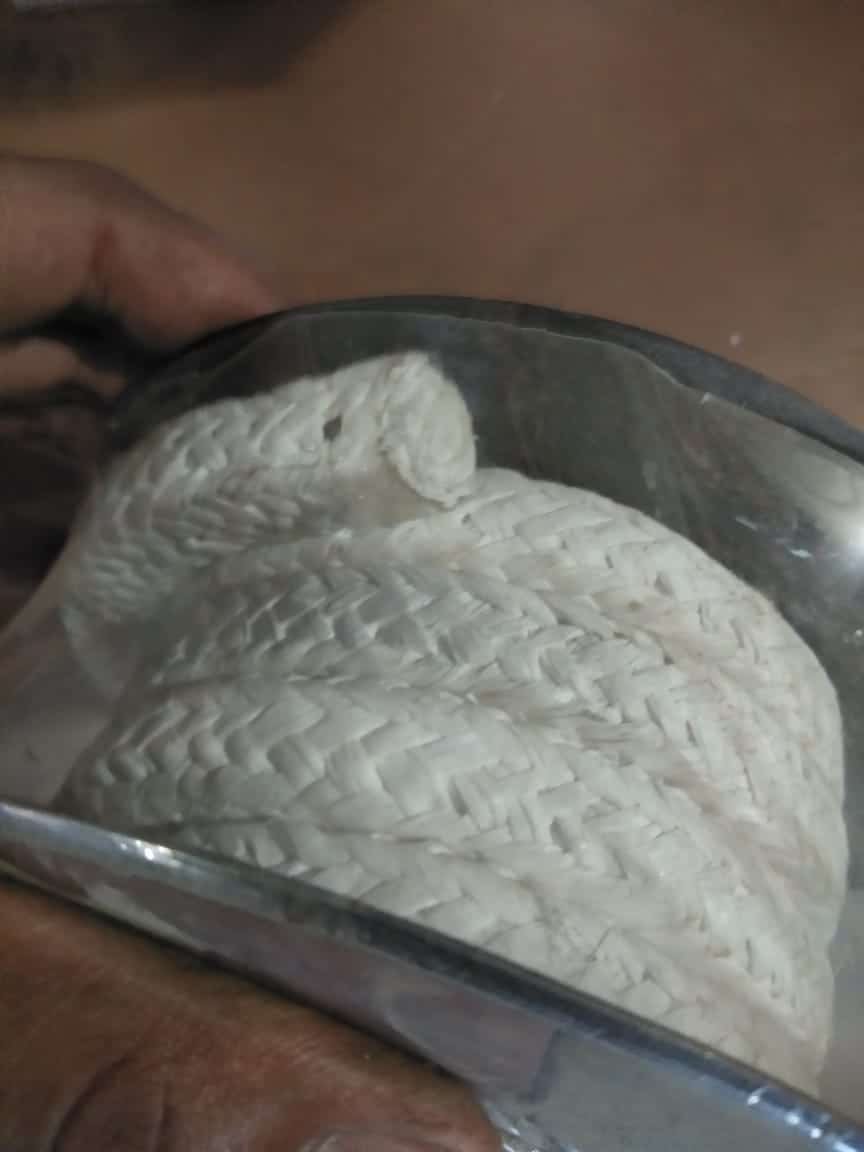

Gland PTFE Packing

Description

Understanding Gland PTFE Packing in Industrial Systems

A gland packing seal remains one of the most reliable methods for sealing fluids in industrial equipment. Specifically, it is used extensively in both dynamic and static applications to prevent process fluid leakage along rotating or reciprocating shafts. Found within a gland and stuffing box assembly, this mechanical seal relies on controlled axial compression. Consequently, it creates a tight radial barrier that effectively stops leaks in a pump packing gland or packing gland shaft seal.

What is PTFE Gland Packing?

Polytetrafluoroethylene (PTFE) is a synthetic fluoropolymer known for its exceptional chemical resistance, extremely low coefficient of friction, and wide temperature tolerance. In fact, PTFE gland packing is engineered by braiding pure or modified PTFE yarns into dense, pliable sealing rings. As a result, this braided gland packing provides long-lasting chemical inertness across demanding operating environments.

When choosing a gland packing seal for pump operations, engineers evaluate different types of gland packing based on temperature, pressure, shaft speed, and chemical compatibility.

Types of Gland Packing Materials

1. Pure PTFE and ePTFE Packing

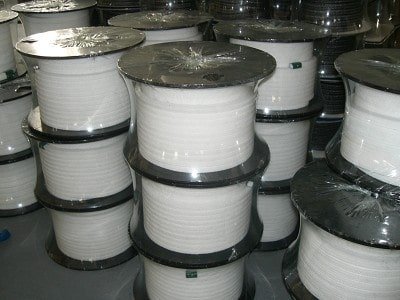

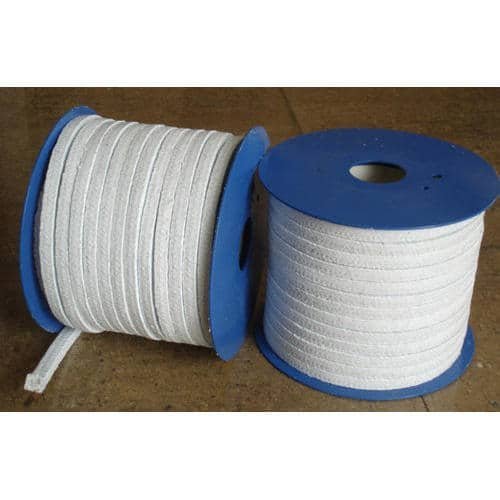

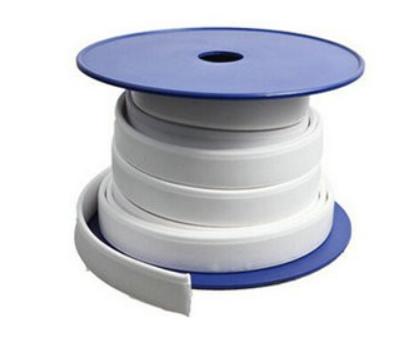

Pure PTFE gland packing is clean, non-contaminating, and chemically inert. However, advanced variations utilize ePTFE material (expanded PTFE) for enhanced mechanical performance. Formed through a micro-stretching process, expanded PTFE tape and yarn feature a fibrillated structure. Consequently, this structure increases flexibility, reduces cold flow, and improves thermal stability.

For instance, brands like Zeus ePTFE supply high-performance fluoropolymer tubing and materials that set industry standards for purity and resilience. Additionally, ePTFE membrane technology and ePTFE tape are frequently utilized across fluid handling and filtration industries to achieve high-grade sealing performance.

2. PTFE Graphite Gland Packing

Standard PTFE can struggle with heat dissipation at high shaft speeds. To overcome this challenge, PTFE graphite gland packing encapsulates fine graphite particles directly within the ePTFE matrix. As a result, the graphite significantly boosts thermal conductivity. This allows heat generated by friction to escape rapidly, thereby preventing shaft scorching and extending overall seal life.

3. Graphite Gland Packing

Pure graphite gland packing excels in high-temperature and high-pressure environments, such as steam valves and high-pressure pumps. Specifically, products like Chesterton 1600 packing utilize die-formed flexible graphite tape reinforced with structural fibers or metal wire. Therefore, they can easily handle extreme conditions where synthetic polymers might otherwise fail.

4. Aramid Gland Packing

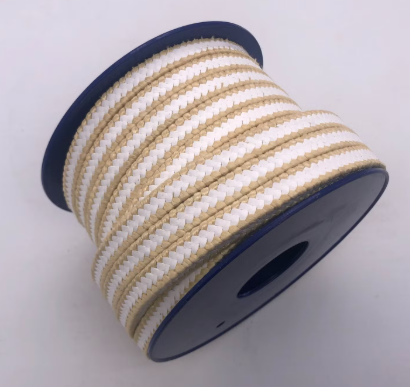

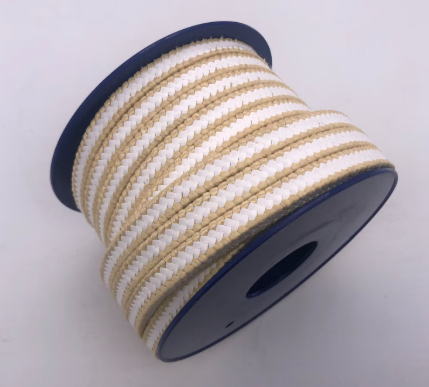

For abrasive slurries, sand, and media containing solids, aramid gland packing (made from Para-aramid/Kevlar yarns) offers outstanding mechanical strength and cut resistance. Furthermore, it is often combined with PTFE in a zebra-braid configuration. Consequently, this combination balances high wear resistance with low friction.

5. Non-Asbestos Gland Packing vs. Asbestos

Historically, asbestos gland packing rope and asbestos gland rope were industry standards due to their thermal resistance. However, due to severe health risks, modern facilities have completely phased them out. Instead, modern industrial plants rely on high-performance non asbestos gland packing made from PTFE, synthetic aramid, flexible graphite, and carbon fibers.

Specialized Pump Applications

Select equipment requires precisely sized sealing materials to perform effectively:

• Gland Packing for Water Pump: Standard gland packing 3 8 (3/8 inch cross-section) is one of the most common dimensions used for industrial water supply, irrigation, and municipal water pumps.

• Berkeley Jet Pump Packing Gland: Specialty marine and irrigation pumps, such as a Berkeley jet pump packing gland, rely on properly sized PTFE or graphite-impregnated packing rings to handle high rotational speeds while maintaining optimal water flow and minimal sleeve wear.

Installation, Removal, and Maintenance

Proper installation ultimately determines how long a gland packing ring set lasts. Technicians should follow these essential sequential steps for maintenance:
