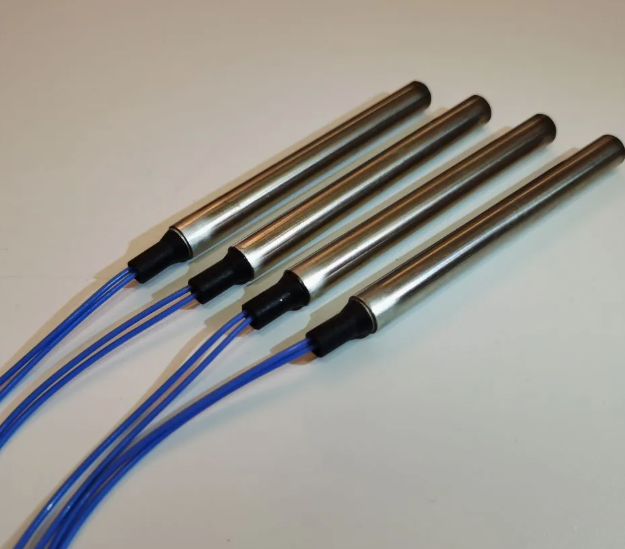

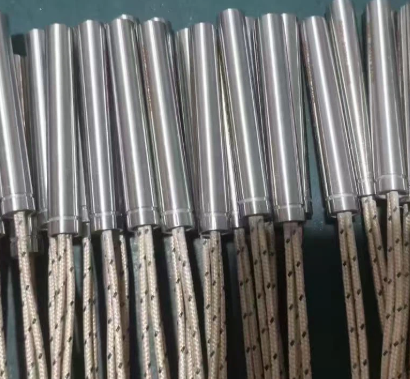

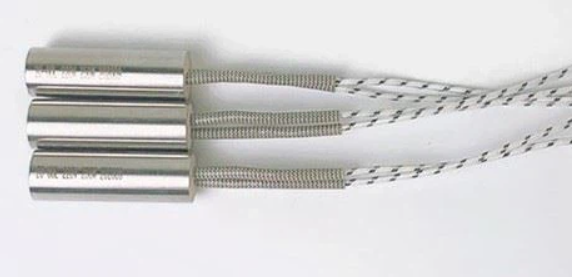

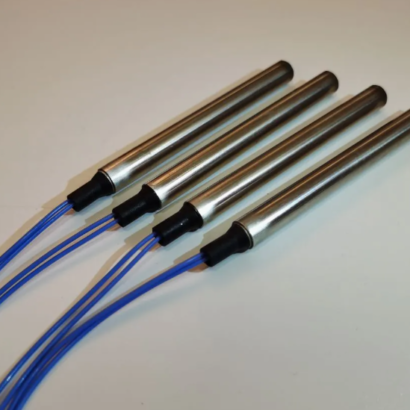

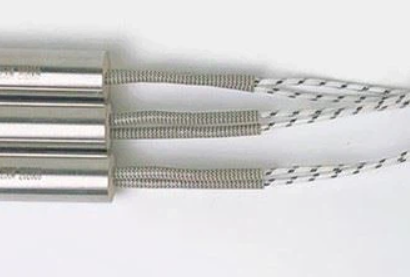

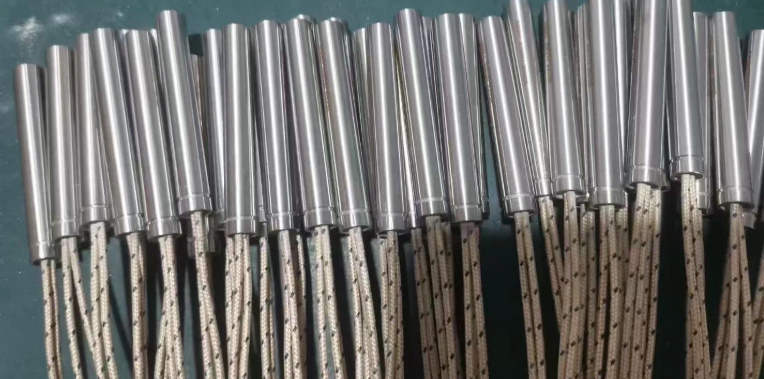

Cartridge Heaters

Description

Cartridge Heaters And Industrial Heating Solutions :

Industrial heating requires precise thermal performance, durability, and strict energy efficiency. At the center of modern high-density localized heating technology are cartridge heaters, specialized cylindrical heating elements engineered primarily to insert into drilled metal blocks, dies, molds, and platens. Understanding how these compact components function—alongside broader heating technologies such as tube heaters, rod heaters,

Key Technical Variations and Options :

• Metric Cartridge Heaters: Built specifically for equipment designed to millimeter tolerances (common in European and Asian machinery), ensuring exact bore-to-sheath clearance for maximum heat transfer.

• Low Voltage & Specialty Ratings: Units such as a 24v cartridge heater are widely utilized in 3D printers, compact laboratory devices, and low-voltage automation systems where safe direct-current operation is required.

• Integrated Temperature Sensing: A cartridge heater with thermocouple features a built-in Type J or Type K sensor inside the tip or mid-body, eliminating the need for a separate probe hole and providing instant feedback to prevent thermal runaway.

Leading Manufacturers and Industry Innovations :

When specifying high-reliability components for plastic injection molding, medical diagnostics, or aerospace manufacturing, brand engineering standards play a crucial role in component lifespan.

• Watlow Cartridge Heater Solutions: As an industry pioneer, a Watlow cartridge heater sets the standard for thermal conductivity and structural integrity. Their flagship line, the Firerod cartridge heater, revolutionized high-density heating by utilizing swaged construction to compress the MgO insulation, drastically improving heat transfer and resistance to vibration.

• Omega Cartridge Heaters: Widely relied upon across research laboratories and heavy production environments, Omega cartridge heaters offer extensive customization across watt densities, lead configurations, and corrosion-resistant sheath materials.

• For Machined Metal Masses & Tooling: Choose a high-density cartridge heater (such as a Firerod cartridge heater or metric cartridge heaters) paired with a PID controller and built-in sensor.

• For Tank and Liquid Processing: Choose an appropriate tubular heater or heavy-duty immersion rod.

• For Large Space or Facility Comfort: Install an overhead gas or electric radiant system like a radiant tube heater designed specifically for high-bay or shop environments.
