Immersion Heater

Description

Immersion heaters offer efficient, direct, and versatile liquid heating across residential, commercial, and industrial settings. Because heating elements sit directly inside the fluid, thermal energy transfers rapidly with minimal standby loss. Consequently, users achieve precise temperature regulation along with maximum thermal performance.

What is an Immersion Heater?

An electric immersion heater consists of specialized resistance heating wires, typically made of Nichrome. These wires sit encased inside a protective metal sheath. Additionally, magnesium oxide powder isolates the wires to ensure electrical insulation and superior heat conduction.

Main Types of Immersion Heaters

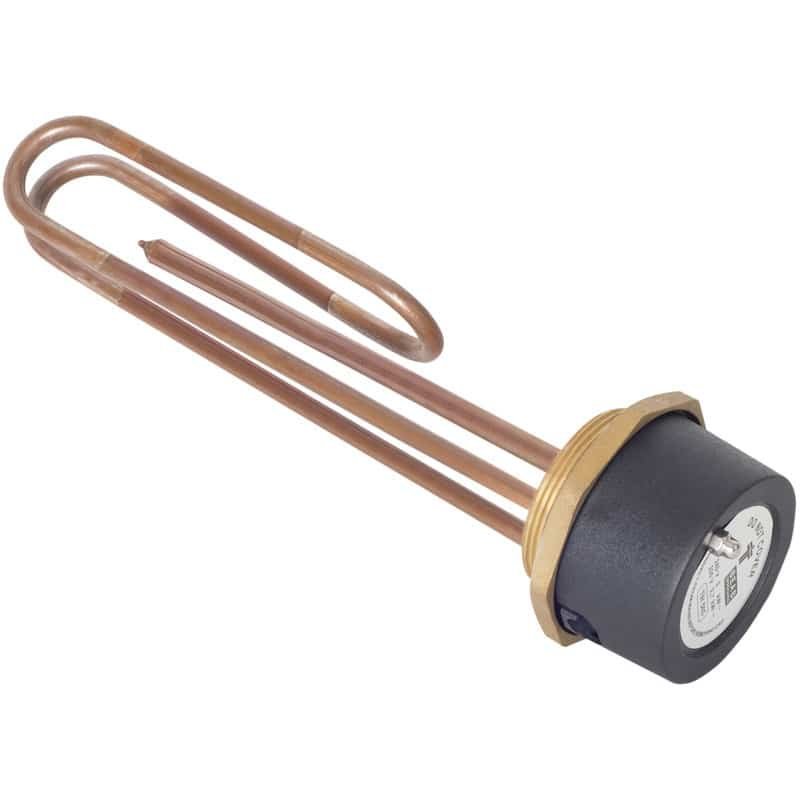

1. Screw Plug Immersion Heaters

First, screw plug immersion heaters suit small-to-medium vessels. They feature hairpin-bent tubular elements welded or brazed into a threaded NPT plug. As a result, they screw directly into tank walls or matching pipe couplings. Therefore, they are ideal for food equipment, small process tanks, and oil preheating.

2. Flanged Immersion Heaters

Second, flanged immersion heaters serve heavy-duty applications requiring high power output. These units feature multiple tubular elements attached to an ANSI pipe flange. Specifically, they bolt directly to a matching tank nozzle. Thus, they are essential for chemical processing, large boilers, and pressure vessels.

Specialty and Material Variants

• Portable Immersion Rods: In addition, portable immersion rods offer a lightweight and compact design. They hang over the edge of a container. Consequently, they quickly heat small domestic water volumes.

• Submersible Water Heaters: Furthermore, submersible water heaters are fully sealed units engineered to operate completely underwater. For example, operators frequently use them in livestock troughs, drainage pits, and temporary reservoirs.

• Stainless Steel Immersion Heaters: Stainless steel models (Grade 304 or 316) provide high mechanical strength. Moreover, they offer strong resistance to mild corrosion. Therefore, they work well for food-grade heating and water processing.

• Titanium Immersion Heaters: However, titanium immersion heaters are necessary for harsh marine or corrosive chemical environments. They resist pitting and severe acid breakdown. In contrast, stainless steel would degrade quickly in these settings.

• Oil Immersion Heaters: Finally, oil immersion heaters utilize a lower watt-density design. As a result, this prevents oil from scorching or carbonizing along the element sheath.

Key Applications

Industrial operations rely on immersion heaters for various tasks, ranging from low-wattage freeze protection to heavy-duty 10 kW systems. For instance, high-wattage units maintain precise viscosities for heavy oils in large tanks. Additionally, they heat industrial wash basins and power steam generators effectively.
