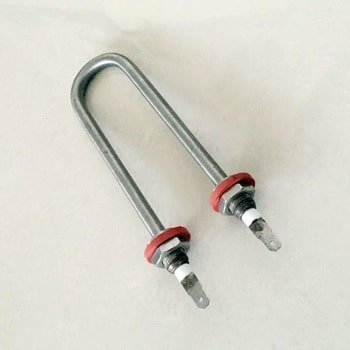

U-Heating Coil

Description

Understanding U Heating Coils: Engineering, Applications, and Design Options

A U coil—often called a U-bend or hairpin thermal element—is vital in modern thermal management systems. Engineers design these coils in a distinctive U-shape to handle thermal expansion cleanly. This compact geometry optimizes fluid or electrical routing within tight spaces. Today, these heating coils serve key roles across residential HVAC, commercial climate control, and industrial processing.

Key Categories of Heating Coils and Thermal Transfer Systems

1. Hydronic and Fluid Systems

Fluid-based heating relies on circulating water or thermal transfer liquids through curved metal tubing.

• Hydronic Coil Integration: In forced-air setups, a hydronic coil transfers heat directly from hot water into the air stream.

• Hot Water Heating Coils: Installed in air handlers, hot water heating coils deliver reliable ambient heat across large facilities.

• Chilled Water Cooling Coil Systems: Dual-temperature HVAC units pair hot water coils with a chilled water cooling coil. This setup lets a single air handler switch between heating and cooling seasons seamlessly.

2. Electric Heating Components

Electrical resistive elements generate heat directly through an electric current.

• Electric Heating Coils: An electric heating coil uses high-resistance alloys like Nichrome to generate instant heat.

• Electric Heating Coil HVAC Units: Installed inside ductwork as supplemental duct heaters or reheat terminals, an electric heating coil HVAC system provides rapid temperature adjustments.

• Heating Element Coil & Ceramic Designs: High-temperature ovens rely on a ceramic heating coil. Ceramic spools support the heating element coil and prevent electrical short circuits under extreme temperatures.

• Water Heating Elements: A specialized bent element for hot water heater units functions as an immersion coil. It transfers energy directly into storage tanks.
