Engineering Efficiency: The Definitive Guide to Flanged Immersion Heaters in Modern Process Industries
In modern process engineering, maintaining precise temperature control is critical to liquid processing, chemical synthesis, and utility management. Among the vast array of industrial heating systems, the flanged immersion heater stands out as an efficient, heavy-duty solution for direct fluid heating. Unlike indirect methods, an immersion heater transfers thermal energy directly into the medium, achieving thermal efficiency ratings approaching 100%

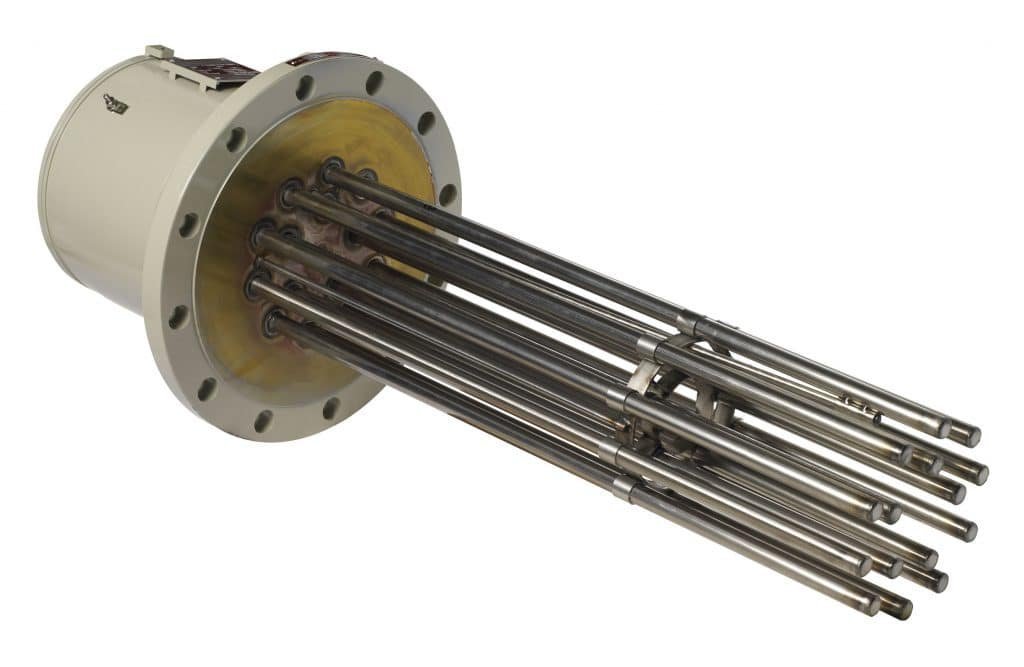

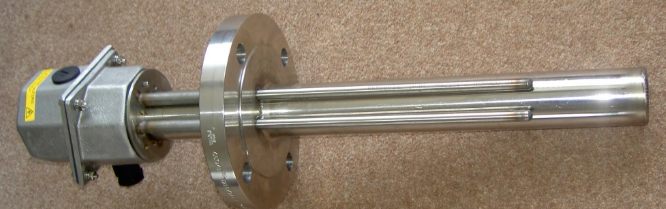

What is a Flanged Immersion Heater?
A flanged heater is a specialized type of electric immersion heater designed for heavy-duty applications involving large volumes, high pressures, or aggressive fluids. It consists of multiple hair-pin bent tubular heaters or a specialized immersion heating element array welded or brazed directly onto a standard ASME or ANSI pipe flange.
Core Structural Components :
Tubular Heating Elements: High-grade resistance wire encased in magnesium oxide (MgO) insulation and protected by sheaths made of copper, stainless steel, Incoloy, or titanium.
The Flange: The structural backbone, available in various pressure ratings (150 lb, 300 lb, 600 lb, or higher) to ensure leak-tight sealing.
Terminal Enclosure: Protects electrical connections from moisture, dust, or explosive atmospheric conditions (NEMA 1, NEMA 4 weather-resistant, or NEMA 7 explosion-proof housings).
Control Interfaces: Integrated thermowells designed to house RTDs, thermocouples, or mechanical thermostats for direct fluid control.
Surface & Vessel Outer Heating :
Ceramic Band Heater: Wraps around cylinders, barrels, and pipes requiring high operating temperatures (up to 760°C / 1400°F).
Mica Band Heaters: Offers thin, efficient surface heating ideal for lower temperatures and compact clearances.
Silicone Rubber Heaters: Flexible, moisture-resistant heating blankets applied directly to complex vessel shapes or drum walls.
| Material | Copper, Stainless Steel ,Titanium . |
| Screw Plug size | 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″ |
| Voltages | 120v, 208v, 240v, 480v and so on. |
| Insulation material | High-purity |
| Diameter tolerance | 2 to 6 mm |
Direct Liquid & Water Heating Solutions :
Industrial Electric Water Heater / Industrial Tankless Water Heater : Provides continuous, on-demand hot water supplies for washdowns or process feed streams.
Industrial Water Heater Systems: Heavy-duty recirculating units designed for process loops and boiler feedwater preheating.
Maximum Thermal Efficiency: Delivering heat inside the medium eliminates ambient transfer losses common with external jackets or combustion heaters.
High Pressure & Flow Safety: Engineered to seal seamlessly with pressure vessel standards, avoiding leaks in continuous loop applications.
